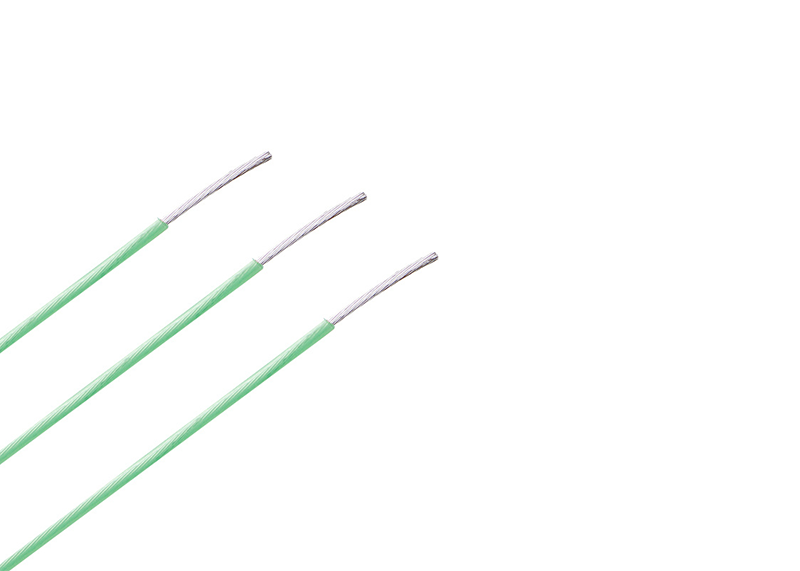

Technical Parameters
- Rated Temperature：-65℃∽+200℃
- Rated Voltage：600V
- Conductor：solid/stranded Silver Copper
- Insulation：FEP(F46) Teflon
- Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate/Standard: GJB773-2000
- Application: widely used in electronic appliances, lighting, instrumentation
|
Section (mm2) |
Conductor No./ Dia (mm) |
Avg.Insulation Thickness (mm) |
Overall Dia. （mm） |
Max. Resistance 20℃ （≤Ω/km） |
|
0.014 |
7/0.05 |
0.15 |
0.45 |
1454 |
|
0.03 |
1/0.20 |
0.15 |
0.50 |
590 |
|
0.035 |
7/0.08 |
0.15 |
0.55 |
568 |
|
0.05 |
7/0.10 |
0.15 |
0.60 |
356 |
|
0.07 |
1/0.30 |
0.20 |
0.70 |
260 |
|
0.08 |
7/0.12 |
0.20 |
0.76 |
245 |
|
0.12 |
7/0.15 |
0.25 |
0.95 |
160 |
|
1/0.40 |
0.25 |
0.90 |
146 |
|
|
0.2 |
7/0.20 |
0.25 |
1.10 |
90.4 |
|
1/0.50 |
0.25 |
1.00 |
93.8 |
|
|
0.35 |
19/0.16 |
0.25 |
1.30 |
53.1 |
|
0.5 |
19/0.18 |
0.25 |
1.40 |
40.1 |
|
0.75 |
19/0.23 |
0.28 |
1.70 |
24.6 |
|
1.0 |
19/0.26 |
0.28 |
1.85 |
20.4 |
|
1.2 |
19/0.28 |
0.30 |
2.00 |
16.6 |
|
1.5 |
19/0.32 |
0.32 |
2.25 |
12.7 |
|
2.0 |
19/0.37 |
0.32 |
2.50 |
10.0 |
|
2.5 |
19/0.41 |
0.40 |
2.85 |
7.43 |
|
4 |
37/0.37 |
0.40 |
3.39 |
4.88 |
|
6 |
37/0.45 |
0.50 |
4.15 |
3.30 |
|
8 |
133/0.28 |
0.50 |
5.20 |
2.30 |
|
10 |
133/0.32 |
0.50 |
5.80 |
1.82 |
|
16 |
133/0.39 |
0.60 |
7.00 |
1.22 |
|
Remarks: able to produce according to customer’s requirements |
||||
