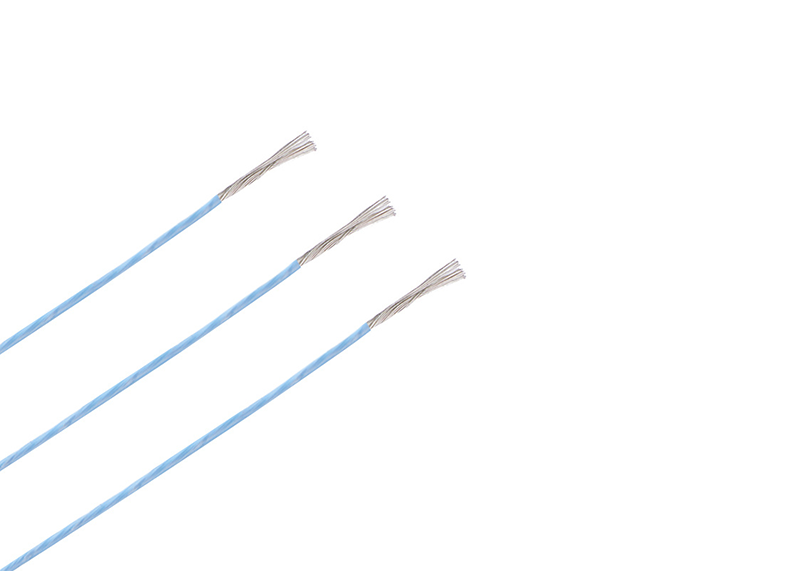

Technical Parameters
- Rated Temperature：-65℃∽+250℃
- Rated Voltage：600V
- Conductor：solid/stranded pure Copper/Tinned Copper/Silver Copper
- Insulation：PTFE Teflon
- Color: red, yellow, blue, white, black, green, brown, grey, purple, off white etc.
- Feature: excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, low loss at high frequency, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.
- Application: widely used in aviation electrical equipment, precision instruments, circuit boards, etc., in high temperature environment, as jumper, bridge line or extra-fine extra-soft wiring widely used in electronic appliances, lighting, instrumentation
|
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Max. Overall Dia.(mm) |
||
|
110V |
250V |
600V |
|||
|
0.013 |
7/0.05 |
0.15 |
0.38 |
0.49 |
0.71 |
|
0.035 |
7/0.08 |
0.24 |
0.47 |
0.58 |
0.81 |
|
0.06 |
7/0.10 |
0.30 |
0.55 |
0.65 |
0.87 |
|
0.08 |
7/0.12 |
0.36 |
0.60 |
0.70 |
0.93 |
|
0.10 |
7/0.14 |
0.42 |
0.70 |
0.83 |
1.00 |
|
0.14 |
7/0.16 |
0.50 |
0.73 |
0.85 |
1.05 |
|
0.20 |
7/0.20 |
0.60 |
0.85 |
0.97 |
1.30 |
|
0.35 |
7/0.25 |
0.80 |
|
1.20 |
1.50 |
|
0.5 |
7/0.30 |
0.90 |
|
1.30 |
1.60 |
|
0.8 |
7/0.37 |
1.10 |
|
1.65 |
1.85 |
|
1 |
19/0.26 |
1.30 |
|
1.88 |
2.00 |
|
1.2 |
19/0.28 |
1.40 |
|
1.95 |
2.15 |
|
1.5 |
19/0.32 |
1.60 |
|
2.15 |
2.35 |
|
Remarks: able to produce according to customer’s requirement |
|||||
