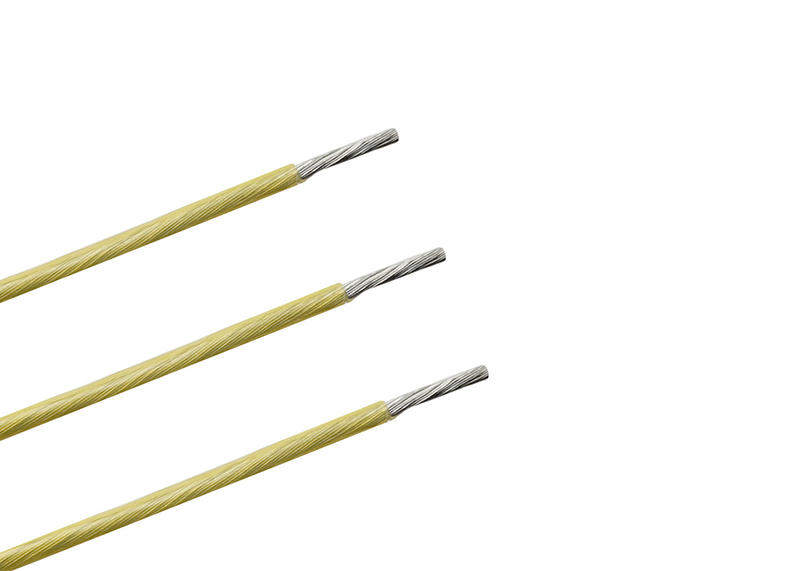

Technical Parameters
- Rating Temperature：-60～+150℃
- Rating Voltage：600V
- Conductor：Solid/tinned/nickel/silver plated copper
- Insulation：ETFE
- Features：Excellent corrosion resistance; Excellent electrical insulation performance; Excellent flame retardant, aging resistance; Good dielectric property, excellent radiation resistance; It has excellent mechanical properties and long service life. No harmful substances, in line with ROHS standards
- Application Scope：It is suitable for household appliances, lighting fixtures, small motors, temperature sensors, electromagnetic coils, automotive internal wiring, electronic appliances and so on
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation. Dia. (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃（≤Ω/km） |
|
30 |
0.05 |
7/0.10 |
0.33 |
0.30 |
0.96 |
381 |
|
1/0.26 |
0.33 |
0.30 |
0.92 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.33 |
0.30 |
1.02 |
239 |
|
1/0.32 |
0.33 |
0.30 |
0.98 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.33 |
0.30 |
1.14 |
150 |
|
1/0.41 |
0.33 |
0.30 |
1.07 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.33 |
0.30 |
1.26 |
94.2 |
|
19/0.12 |
0.33 |
0.30 |
1.26 |
89.3 |
||
|
22 |
0.33 |
7/0.25 |
0.33 |
0.30 |
1.41 |
59.4 |
|
19/0.15 |
0.33 |
0.30 |
1.41 |
56.4 |
||
|
20 |
0.5 |
7/0.32 |
0.33 |
0.30 |
1.62 |
36.7 |
|
19/0.18 |
0.33 |
0.30 |
1.56 |
35.2 |
||
|
18 |
0.8 |
7/0.40 |
0.33 |
0.30 |
1.86 |
22.7 |
|
19/0.23 |
0.33 |
0.30 |
1.81 |
23.2 |
||
|
17 |
1 |
19/0.26 |
0.33 |
0.30 |
1.96 |
18.3 |
|
16 |
1.3 |
19/0.30 |
0.33 |
0.30 |
2.16 |
14.6 |
|
15 |
1.5 |
19/0.32 |
0.33 |
0.30 |
2.26 |
11.7 |
|
14 |
2 |
19/0.37 |
0.33 |
0.30 |
2.51 |
8.96 |
|
13 |
2.5 |
19/0.41 |
0.33 |
0.30 |
2.71 |
6.86 |
|
12 |
3.3 |
19/0.48 |
0.33 |
0.30 |
3.06 |
5.64 |
|
11 |
4 |
37/0.37 |
0.33 |
0.30 |
3.25 |
4.51 |
|
10 |
5.3 |
37/0.43 |
0.33 |
0.30 |
3.67 |
3.546 |
|
Remarks: able to produce according to customer’s requirement |
||||||
