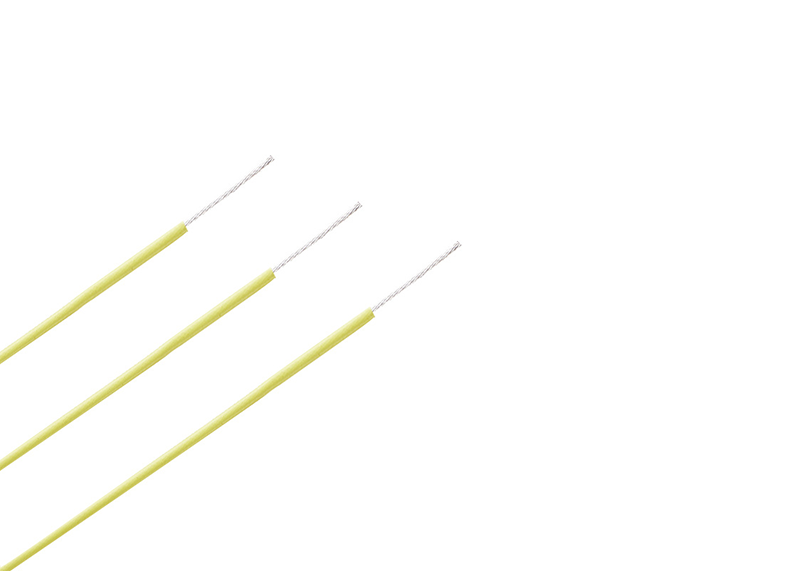

Technical Parameters
- Rating Temperature：-65℃∽250℃
- Rating Voltage：600V、1140V
- Conductor：Ultra fine tinned copper wire stranded
- Insulation：PFA
- Color:red,yellow,blue,white,black,green,brown,orange, purple,yellow/green,transparent etc.
- Features：It has the characteristics of cracking resistance, high temperature resistance, low temperature resistance, bending resistance, acid and alkali resistance, oil resistance and flame
- RetardantWidely used in electronic industry, communication industry, aviation industry, mechanical and electrical industry, etc
|
Section area (mm2) |
Conductor construction （No./mm） |
Insulation Thickness (≥mm) |
Overall Diameter (≥mm) |
DC Resistance at 20℃ （≤Ω/km） |
|
0.014 |
7/0.05 |
0.15 |
0.45 |
1454 |
|
0.030 |
16/0.05 |
0.15 |
0.50 |
590 |
|
0.035 |
19/0.05 |
0.15 |
0.55 |
568 |
|
7/0.08 |
0.15 |
0.55 |
568 |
|
|
0.05 |
26/0.05 |
0.15 |
0.60 |
356 |
|
10/0.08 |
0.15 |
0.60 |
356 |
|
|
0.07 |
37/0.05 |
0.20 |
0.70 |
260 |
|
19/0.07 |
0.20 |
0.70 |
260 |
|
|
14/0.08 |
0.20 |
0.70 |
260 |
|
|
0.08 |
42/0.05 |
0.20 |
0.78 |
245 |
|
21/0.07 |
0.20 |
0.78 |
245 |
|
|
16/0.08 |
0.20 |
0.78 |
245 |
|
|
0.12 |
63/0.05 |
0.25 |
0.95 |
160 |
|
32/0.07 |
0.25 |
0.95 |
160 |
|
|
24/0.08 |
0.25 |
0.95 |
160 |
|
|
0.2 |
105/0.05 |
0.25 |
1.10 |
90.4 |
|
56/0.07 |
0.25 |
1.10 |
90.4 |
|
|
42/0.08 |
0.25 |
1.10 |
90.4 |
|
|
0.35 |
182/0.05 |
0.25 |
1.30 |
53.1 |
|
96/0.07 |
0.25 |
1.30 |
53.1 |
|
|
70/0.08 |
0.25 |
1.30 |
53.1 |
|
|
0.5 |
259/0.05 |
0.25 |
1.40 |
36.7 |
|
133/0.07 |
0.25 |
1.40 |
36.7 |
|
|
105/0.08 |
0.25 |
1.40 |
36.7 |
|
|
Remarks: able to produce as customer’s requirement |
||||
