Technical Parameters
- Rated voltage: 450/750V
- Rated temperature resistance: -60 ~ +105℃

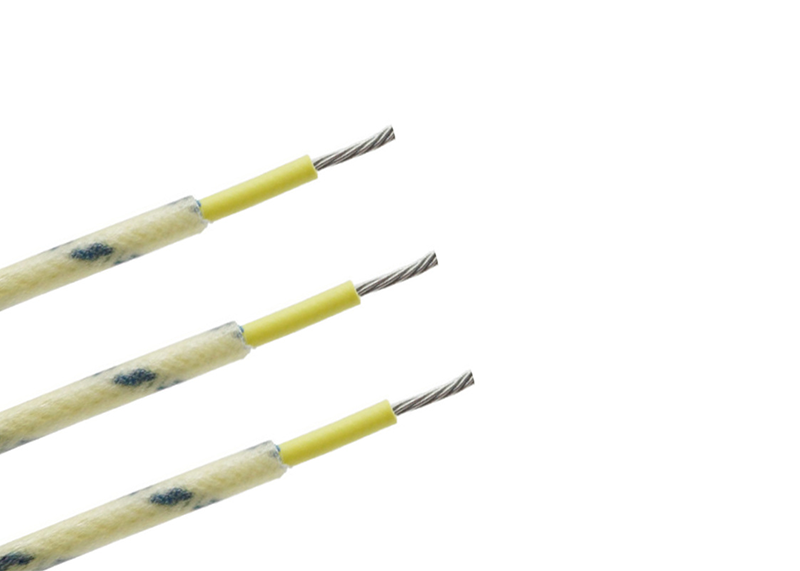

- Conductor: stranded tinned copper wire
- Insulation: Polyvinyl chloride (PVC)
- Sheath: glass fiber braided + Lac coating
- The product features wear-resistant, waterproof, cold-resistant, oil-resistant and gasoline mixture resistant, not easy to burn, not easy to age, environmental protection, can be normally used in 98% relative humidity environment.
- It is widely used for low-voltage lines of aircraft, line installation of expressway monitoring equipment, special inductive coil lines for expressway (electronic police line, ground sensing coil line), lighting lamps wiring, and high pole lamp wiring.
|
Section Area (mm2) |
Construction (No./mm) |
Insulation Thickness （mm） |
Sheath Thickness （mm） |
Shielded wire Dia. （mm） |
Overall Dia. （mm） |
Max. Resistance at 20 ℃ （Ω /km） |
|
| unshielded | shield | ||||||
|
0.35 |
7/0.25 |
0.40 |
0.50 |
0.10-0.15 |
2.55 |
2.95 |
50.8 |
|
0.5 |
7/0.30 |
0.40 |
0.50 |
0.10-0.15 |
2.70 |
3.20 |
40.1 |
|
0.75 |
7/0.37 |
0.40 |
0.50 |
0.10-0.15 |
2.90 |
3.40 |
26.7 |
|
0.8 |
7/0.40 |
0.40 |
0.50 |
0.10-0.15 |
3.00 |
3.50 |
25.0 |
|
1 |
19/0.26 |
0.45 |
0.50 |
0.10-0.15 |
3.20 |
3.70 |
20.0 |
|
1.2 |
19/0.28 |
0.45 |
0.50 |
0.10-0.15 |
3.20 |
3.70 |
14.6 |
|
1.5 |
19/0.32 |
0.50 |
0.50 |
0.10-0.15 |
3.40 |
3.90 |
13.7 |
|
2 |
19/0.37 |
0.50 |
0.50 |
0.10-0.15 |
3.90 |
4.40 |
10.0 |
|
2.5 |
19/0.41 |
0.50 |
0.50 |
0.10-0.15 |
4.05 |
4.50 |
8.21 |
|
3 |
19/0.45 |
0.50 |
0.50 |
0.10-0.15 |
4.25 |
4.75 |
6.53 |
|
4 |
49/0.32 |
0.50 |
0.50 |
0.10-0.15 |
4.90 |
5.40 |
5.09 |
|
5.5 |
49/0.36 |
0.50 |
0.50 |
0.10-0.15 |
5.24 |
5.74 |
3.50 |
|
6 |
49/0.39 |
0.50 |
0.50 |
0.10-0.15 |
5.50 |
6.00 |
3.39 |
|
8 |
49/0.45 |
0.60 |
0.50 |
0.10-0.15 |
6.25 |
6.75 |
2.37 |
|
10 |
49/0.52 |
0.60 |
0.50 |
0.10-0.15 |
6.88 |
7.38 |
1.82 |
|
16 |
49/0.64 |
0.60 |
0.50 |
0.10-0.15 |
7.96 |
8.40 |
1.22 |
|
25 |
98/0.58 |
0.60 |
0.50 |
0.10-0.15 |
9.70 |
10.2 |
0.795 |
|
35 |
133/0.58 |
0.60 |
0.50 |
0.10-0.15 |
10.90 |
11.5 |
0.553 |
|
Remarks: able to produce as customer’s requirement |
|||||||
