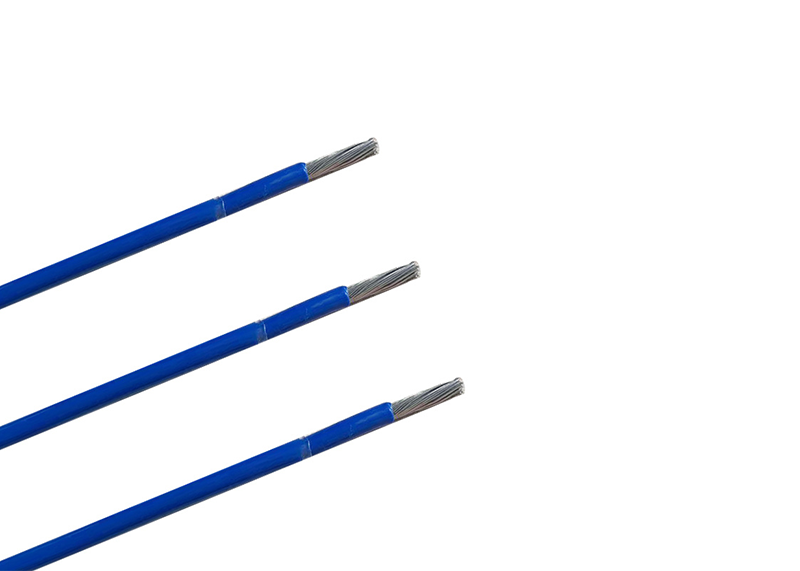

Technical Parameters
- Rating Temperature：-60～+105℃
- Rating Voltage：450/750V
- Conductor：stranded tinned copper wire
- Insulation：PVC + Nylon sheath
- Product features: Wear-resistant, waterproof, cold resistance, oil resistance and gasoline mixture, not easy to burn, not easy to aging, environmental protection, in the relative humidity of 98% environment can be used normally. No harmful substances, in line with ROHS standards.
- Application: Widely used in aircraft low-voltage line, highway monitoring equipment line installation, highway inductance coil special line (electronic police line, ground sensor coil line) is also used for lighting lamp wiring, road high pole light line.
|
Section Area (mm2) |
Construction (No./mm) |
Insulation Thickness （mm） |
Sheath Thickness （mm） |
Shielded wire Dia. （mm） |
Overall Dia. （mm） |
Max. Resistance at 20 ℃ （≤ |
|
|
非屏蔽型 |
屏蔽型 |
||||||
|
0.30 |
16/0.15 |
0.35 |
0.12 |
0.10 |
1.7 |
2.2 |
71.2 |
|
0.35 |
7/0.26 |
0.35 |
0.12 |
0.10 |
1.7 |
2.2 |
50.8 |
|
0.35 |
19/0.16 |
0.35 |
0.12 |
0.10 |
1.7 |
2.2 |
50.8 |
|
0.5 |
7/0.30 |
0.35 |
0.12 |
0.10 |
1.9 |
2.4 |
40.1 |
|
0.5 |
19/0.20 |
0.35 |
0.12 |
0.10 |
2.0 |
2.5 |
40.1 |
|
0.75 |
19/0.23 |
0.35 |
0.12 |
0.10 |
2.1 |
2.6 |
26.7 |
|
0.75 |
42/0.15 |
0.35 |
0.12 |
0.10 |
2.1 |
2.6 |
26.7 |
|
1 |
19/0.26 |
0.35 |
0.14 |
0.10 |
2.3 |
2.7 |
20 |
|
1 |
32/0.20 |
0.35 |
0.14 |
0.10 |
2.3 |
2.7 |
20 |
|
1.2 |
19/0.28 |
0.4 |
0.14 |
0.10 |
2.5 |
2.9 |
14.6 |
|
1.2 |
49/0.18 |
0.4 |
0.14 |
0.10 |
2.5 |
3.0 |
14.6 |
|
1.5 |
19/0.32 |
0.4 |
0.14 |
0.10 |
2.7 |
3.2 |
13.7 |
|
1.5 |
48/0.20 |
0.4 |
0.14 |
0.10 |
2.7 |
3.2 |
13.7 |
|
2 |
19/0.37 |
0.45 |
0.14 |
0.12 |
3.0 |
3.5 |
10.0 |
|
2 |
49/0.23 |
0.45 |
0.14 |
0.12 |
3.0 |
3.5 |
10.0 |
|
2 |
37/0.26 |
0.45 |
0.14 |
0.12 |
3.05 |
3.55 |
10.0 |
|
2.5 |
19/0.41 |
0.5 |
0.14 |
0.12 |
3.4 |
3.9 |
8.21 |
|
2.5 |
37/0.30 |
0.5 |
0.14 |
0.12 |
3.4 |
3.9 |
8.21 |
|
2.5 |
49/0.25 |
0.5 |
0.14 |
0.12 |
3.6 |
4.1 |
8.21 |
|
2.5 |
77/0.20 |
0.5 |
0.14 |
0.12 |
3.6 |
4.1 |
8.21 |
|
3 |
37/0.32 |
0.5 |
0.14 |
0.12 |
3.6 |
4.1 |
6.63 |
|
3 |
49/0.28 |
0.5 |
0.14 |
0.12 |
3.8 |
4.3 |
6.63 |
|
4 |
37/0.37 |
0.6 |
0.16 |
0.12 |
3.9 |
4.4 |
5.09 |
|
4 |
49/0.32 |
0.6 |
0.16 |
0.12 |
4.3 |
4.8 |
5.09 |
|
4 |
77/0.26 |
0.6 |
0.16 |
0.12 |
4.4 |
4.9 |
5.09 |
|
4 |
56/0.30 |
0.6 |
0.16 |
0.12 |
4.4 |
4.9 |
5.09 |
|
5 |
37/0.41 |
0.6 |
0.16 |
0.12 |
4.4 |
4.9 |
4.13 |
|
5 |
49/0.37 |
0.6 |
0.16 |
0.12 |
4.8 |
5.3 |
4.13 |
|
6 |
37/0.45 |
0.6 |
0.16 |
0.12 |
4.6 |
5.1 |
3.39 |
|
6 |
49/0.40 |
0.6 |
0.16 |
0.12 |
5.1 |
5.6 |
3.39 |
|
6 |
84/0.30 |
0.6 |
0.16 |
0.12 |
5.1 |
5.6 |
3.39 |
|
10 |
133/0.32 |
0.9 |
0.20 |
0.12 |
6.6 |
7.1 |
1.95 |
|
16 |
133/0.40 |
1.0 |
0.20 |
0.15 |
8.3 |
8.9 |
1.24 |
|
25 |
196/0.40 |
1.0 |
0.25 |
0.15 |
9.9 |
10.5 |
0.795 |
|
Remarks: able to produce as customer’s requirement |
|||||||
Ω /km）
