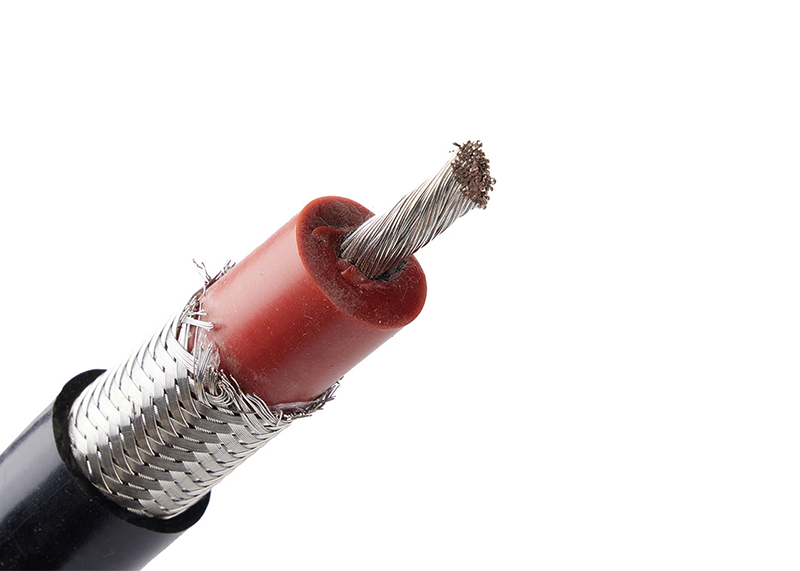

Technical data:
- Rated Temperature:Conductor: -60℃∽+200℃ Jacket:-40℃∽+105℃
- Insulation Voltage：6KVAC、10KVAC,etc.
- Conductor: Tinned Copper
- Insulation：Silicone Rubber
- Insulation.Color:Red,yellow,blue,white,black,green,brown,orange,gray,off white,etc.
- Shield:Tinned Copper/Copper/Steel
- Jacket:Special Wear Resistance
- Jacket Color:Red,black,etc.
- Application:H F class insulation for motor and electrical appliances
|
Section (mm2) |
Conductor No. (mm） |
Overall Dia. (mm) |
Shield Thickness（mm) |
Jacket Thickness（mm） |
Max. Resistance 20℃ （≤Ω/km） |
|
|
JGG-6KVAC |
JGG-10KVAC |
|||||
|
0.50 |
16/0.20 |
5.85 |
8.80 |
≥0.2 |
≥1.2 |
40.1 |
|
0.75 |
24/0.20 |
6.10 |
8.90 |
26.7 |
||
|
1.0 |
32/0.20 |
6.20 |
9.00 |
20.0 |
||
|
1.5 |
48/0.20 |
6.80 |
9.10 |
13.7 |
||
|
2.0 |
40/0.25 |
7.20 |
9.20 |
10.0 |
||
|
2.5 |
49/0.25 |
7.80 |
9.30 |
≥1.5 |
8.21 |
|
|
4.0 |
56/0.30 |
8.50 |
10.00 |
5.09 |
||
|
6.0 |
84/0.30 |
9.80 |
11.50 |
3.39 |
||
|
10.0 |
84/0.40 |
10.90 |
12.00 |
1.95 |
||
|
16.0 |
126/0.40 |
12.80 |
13.60 |
1.24 |
||
|
25.0 |
196/0.40 |
14.50 |
15.00 |
≥2.0 |
0.80 |
|
|
35.0 |
276/0.40 |
16.00 |
16.80 |
0.57 |
||
|
50.0 |
396/0.40 |
18.10 |
18.80 |
0.40 |
||
|
70.0 |
360/0.50 |
20.50 |
21.00 |
0.28 |
||
|
Remarks: able to produce voltage class according to customer’s requirement |
||||||
