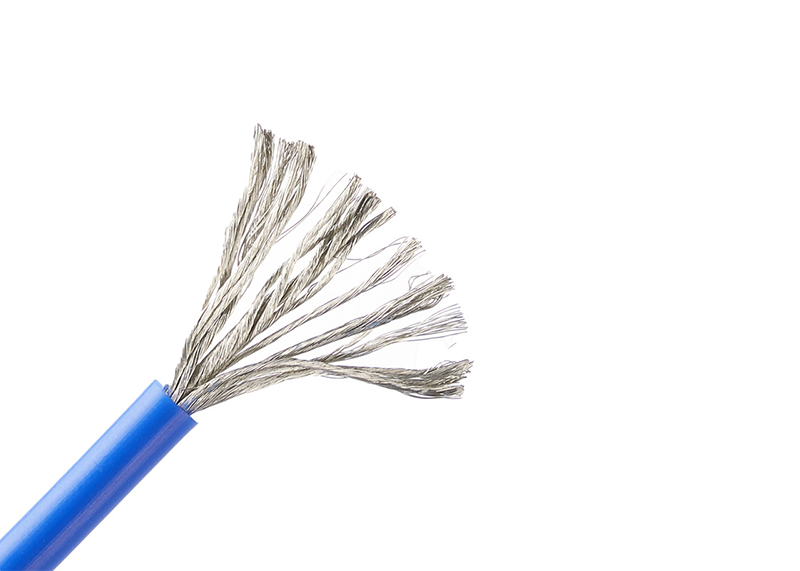

Technical data:
- Rated Temperature：-60℃∽+180℃,excellent performance for cold resistance and heat resistance
- Rated Voltage：500V
- Conductor：super soft stranded conductor
- Insulation：Silicone Rubber
- Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Flexible wire bending resistance easy to install
- Application: widely used in electronic appliances, lighting, instrumentation
|
Section(mm2) |
Conductor(mm) |
Avg.Insulation Thickness(mm) |
Overall Dia(mm) |
Max. Resistance 20℃ （≤Ω/km） |
|
0.07 |
according to purchase order specification sheet |
0.45 |
1.30 |
365 |
|
0.10 |
0.45 |
1.30 |
188 |
|
|
0.12 |
0.45 |
1.35 |
160 |
|
|
0.15 |
0.45 |
1.35 |
136 |
|
|
0.2 |
0.60 |
1.8 |
95 |
|
|
0.3 |
0.60 |
1.9 |
72 |
|
|
0.4 |
0.50 |
1.85 |
50 |
|
|
0.5 |
0.60 |
2.20 |
40 |
|
|
0.75 |
0.70 |
2.60 |
27 |
|
|
1 |
0.70 |
2.80 |
20 |
|
|
1.5 |
0.70 |
3.10 |
14 |
|
|
2 |
0.70 |
3.30 |
10 |
|
|
2.5 |
0.80 |
3.70 |
8.2 |
|
|
4 |
0.80 |
4.30 |
4.88 |
|
|
6 |
0.80 |
5.20 |
4.0 |
|
|
10 |
1.00 |
6.80 |
1.95 |
|
|
16 |
1.50 |
9.00 |
1.24 |
|
|
25 |
1.50 |
10.70 |
0.8 |
|
|
35 |
1.90 |
12.50 |
0.565 |
|
|
50 |
2.00 |
14.00 |
0.393 |
|
|
70 |
2.00 |
16.40 |
0.277 |
|
|
95 |
2.00 |
18.50 |
0.210 |
|
|
120 |
2.20 |
20.40 |
0.164 |
|
|
Remarks: able to produce according to customer’s requirement |
||||
