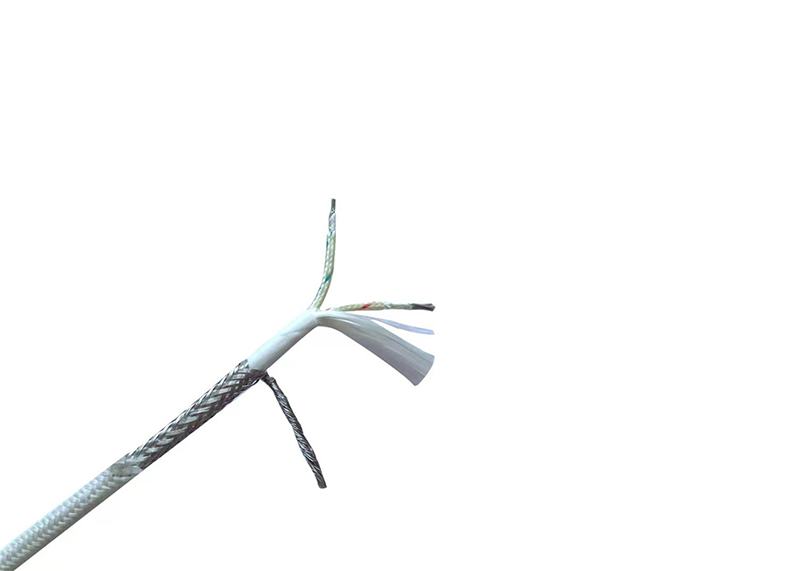

Technical data:
- Rated Temperature:-65℃∽350℃
- Rated Voltage：300V/500V
- Conductor: K type precision grade alloy wire
- Insulation：Special glass fiber
- Color:red,yellow,blue,white,black,green,brown,orange,purple,yellow green,etc.
- Inner Protective Material:Teflon
- Shield:Steel
- Jacket:Special glass fiber
- Application:applied for temperature measuring devices, used in petrol, chemical, metallurgy, power industry etc.
|
Conductor Section (mm2) |
Conductor No./mm |
Avg.Insulation Thickness （mm） |
Core No. |
Jacket Thickness（mm） |
Alloy Wire for Compensation Wire |
|
|
Positive |
Negative |
|||||
|
0.20 |
7/0.20 |
≥0.2 |
2Core |
≥0.3 |
KPX |
KNX |
|
0.35 |
7/0.25 |
KPX |
KNX |
|||
|
0.50 |
7/0.30 |
KPX |
KNX |
|||
|
0.75 |
7/0.37 |
KPX |
KNX |
|||
|
1.0 |
7/0.43 |
KPX |
KNX |
|||
|
1.5 |
7/0.52 |
KPX |
KNX |
|||
|
Remarks: able to produce according to customer’s requirement |
||||||
