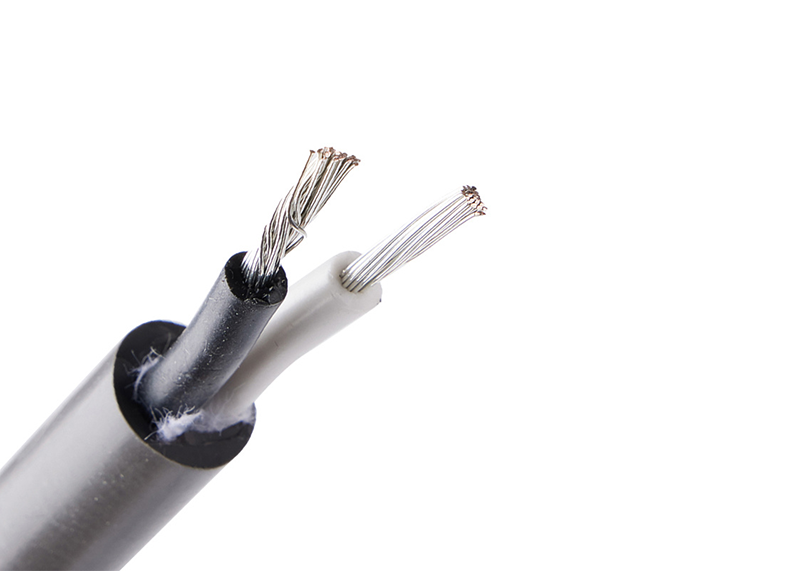

Technical data:
- Rated Temperature:-65℃∽+200℃
- Rated Voltage：3KVDC、6KVDC、10KVDC、15KVDC、20KVDC、30KVDC、40KVDC、50KVDC
- Conductor: Tinned Copper
- Insulation：Silicone Rubber
- ConductorColor:Red,yellow,blue,white,black,green,brown,orange,gray,transparent,bio-color ,etc.
- Wrapping:high temperature tape
- Jacket:Silicone Rubber
- Jacket Color:Red,yellow,blue,white,black,green,brown,orange,gray,etc.
- Application:High voltage wire for electrical appliances and other equipment.
|
Section (mm2) |
Conductor No. (mm）
|
OD(mm) |
Core NO. |
Jacket Thickness （mm） |
Max. Resistance 20℃ （≤Ω/km） |
|||||||
|
3KV DC |
6KV DC |
10KVDC |
15KVDC |
20KVDC |
30KVDC |
40KVDC |
50KVDC |
|||||
|
0.14 |
7/0.16 |
1.5 |
2.1 |
2.6 |
2.9 |
3.3 |
4.1 |
4.9 |
5.7 |
≤7Core |
≥1.5 |
160 |
|
0.20 |
7/0.20 |
1.6 |
2.2 |
2.7 |
3.0 |
3.4 |
4.2 |
5.0 |
5.8 |
83.5 |
||
|
0.35 |
7/0.26 |
1.8 |
2.4 |
2.9 |
3.2 |
3.6 |
4.4 |
5.2 |
6.0 |
49.5 |
||
|
0.50 |
7/0.32 |
2.0 |
2.6 |
3.1 |
3.4 |
3.8 |
4.6 |
5.4 |
6.2 |
36.0 |
||
|
0.75 |
19/0.23 |
2.2 |
2.8 |
3.3 |
3.6 |
4.0 |
4.8 |
5.6 |
6.4 |
≤19Core |
≥2.0 |
22.7 |
|
1.34 |
19/0.30 |
2.5 |
3.1 |
3.6 |
3.9 |
4.3 |
5.1 |
5.9 |
6.7 |
14.6 |
||
|
2 |
19/0.37 |
3.2 |
3.8 |
4.5 |
4.8 |
5.1 |
6.1 |
7.3 |
7.9 |
9.45 |
||
|
Remarks: able to produce voltage class according to customer’s requirement |
||||||||||||
