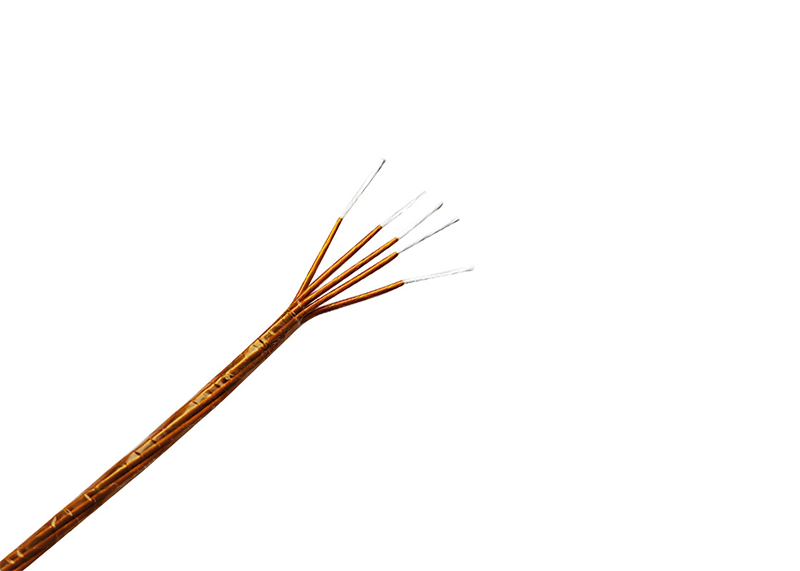

Technical Parameters
- Rating Temperature：300℃，Can withstand 350 ℃ for a short time
- Rating Voltage：600V
- Conductor：silver/nickel plated copper, pure nickel
- Insulation：PI insulation and PI wrapping sheath
- insulation Volume Resistance：1017Ω.cm
- Radiation resistance：5*107Gy
- Features：Good heat resistance; Strong mechanical properties, wear resistance; It has good electrical insulation performance, electric resistance and partial discharge, small change of electrical insulation performance under high temperature; High radiation resistance. The tensile strength and elongation do not change greatly under the irradiation of strong rays, which is incomparable with fluorinated materials. Resistance to organic solvents, ozone resistance, enzyme resistance, corrosion resistance; non-water absorption, non - combustion, self - extinguishing to fire. No harmful substances, in line with ROHS standards
- Application Scope：Hot runner, heating mold, instrumentation, metallurgy, thermal engineering, petroleum, chemical, natural gas, chemicals and other special environment
|
Section Area (mm2) |
Conductor Construction （No./mm） |
Conductor Dia. （mm） |
Overall Dia. （mm） |
DC Resistance at 20℃（≤Ω/km） |
|
2*0.20 |
7/0.20 |
0.96 |
2.25 |
83.5 |
|
3*0.35 |
7/0.26 |
1.15 |
2.80 |
49.5 |
|
4*0.50 |
7/0.30 |
1.26 |
3.35 |
36.0 |
|
2*0.75 |
19/0.23 |
1.50 |
3.30 |
26.0 |
|
3*1.0 |
19/0.26 |
1.66 |
3.90 |
19.5 |
|
4*1.5 |
19/0.32 |
1.96 |
5.00 |
13.3 |
|
2*2.0 |
19/0.37 |
2.20 |
4.70 |
10.0 |
|
3*2.5 |
19/0.41 |
2.40 |
5.45 |
7.98 |
|
2*4.0 |
37/0.37 |
2.95 |
6.20 |
4.95 |
|
Remarks: able to produce as customer’s requirement |
||||
