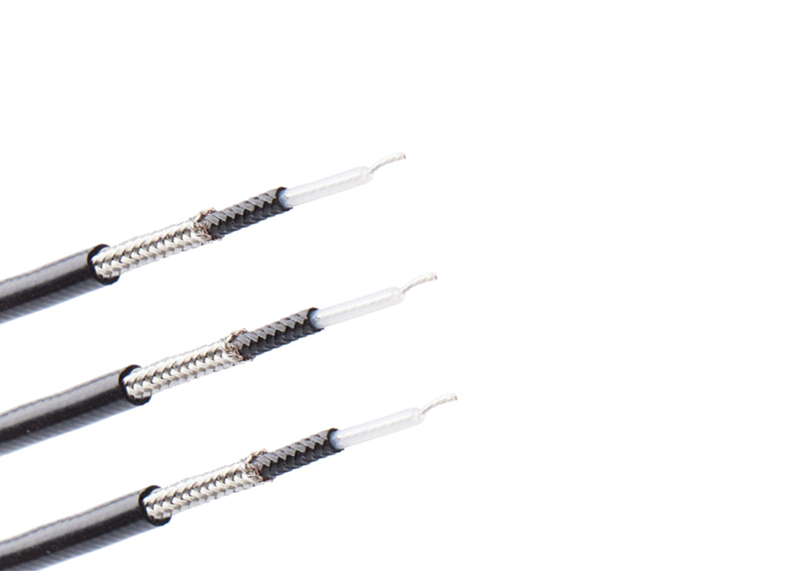

Technical data:
- Rated Temperature：Conductor:-60℃∽+200℃;Jacket:-40℃∽+105℃
- Rated Voltage：10KV-50KV
- Conductor：Solid/Stranded High Purity Silver Copper
- Insulation：FEP
- Shield:High Purity Tinned Copper
- Jacket:Wear Resistance
- Color: red, yellow, blue, white, black, green, brown, orange, purple,transparent etc.
- Excellent performance for wear resistance, oil resistance，stretch resistance, size small，and good comprehensive performance
- Detail parameters according to purchase order
- Application: widely used in electronic appliances, lighting, instrumentation
|
Section (mm2) |
Conductor No./mm |
Insulation Thickness (mm) |
Jacket Thickness（mm） |
Max. Resistance 20℃ （≤Ω/km） |
||||
|
50KVDC |
40KVDC |
30KVDC |
20KVDC |
10KVDC |
||||
|
0.12 |
7/0.15 |
≥1.10 |
≥1.0 |
≥0.8 |
≥0.65 |
≥0.55 |
≥0.35 |
146 |
|
0.20 |
7/0.20 |
83.5 |
||||||
|
0.35 |
19/0.16 |
≥1.15 |
≥1.05 |
≥0.85 |
≥0.65 |
≥0.58 |
49.5 |
|
|
0.50 |
19/0.18 |
36.0 |
||||||
|
0.56 |
7/0.32 |
35.3 |
||||||
|
0.75 |
19/0.23 |
≥0.40 |
23.7 |
|||||
|
0.85 |
7/0.40 |
22.2 |
||||||
|
1.0 |
19/0.26 |
19.0 |
||||||
|
1.35 |
19/0.30 |
≥0.45 |
14.7 |
|||||
|
2.0 |
19/0.37 |
8.98 |
||||||
|
Remarks: able to produce according to customer’s requirement |
||||||||
