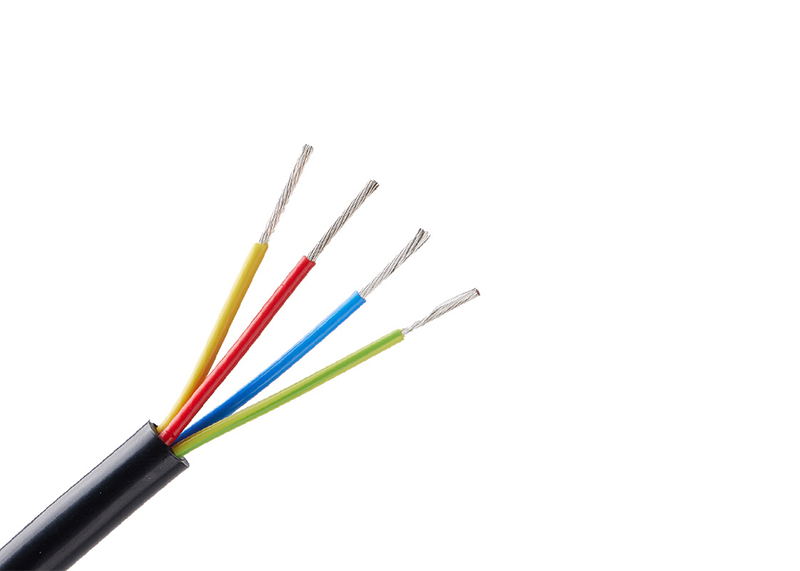

Technical data:
- Rated Temperature：Conductor:-60℃∽+200℃;Jacket:-40℃∽+105℃
- Rated Voltage：600V
- Conductor：Solid/Stranded Tinned Copper
- Insulation：FEP
- Jacket:Wear Resistance
- Color: red, yellow, blue, white, black, green, brown, orange, purple,transparent etc.
- Excellent performance for wear resistance, oil resistance，stretch resistance, and good comprehensive performance
- Detail parameters according to purchase order
- Application: widely used in electronic appliances, lighting, instrumentation
|
Section (mm2) |
Conductor No./mm |
Avg.Insulation Thickness(mm) |
Core No. |
Jacket Thickness （mm） |
Max. Resistance 20℃ （≤Ω/km） |
|
0.035 |
7/0.08 |
0.15 |
≤37Core |
≥1.0 |
568 |
|
0.05 |
7/0.10 |
0.20 |
356 |
||
|
0.08 |
7/0.12 |
0.20 |
245 |
||
|
0.12 |
7/0.15 |
0.25 |
160 |
||
|
0.20 |
7/0.20 |
0.25 |
90.4 |
||
|
0.35 |
19/0.16 |
0.25 |
53.1 |
||
|
0.50 |
19/0.18 |
0.25 |
36.7 |
||
|
0.75 |
19/0.23 |
0.28 |
≤19Core |
≥1.2 |
24.6 |
|
1.0 |
19/0.26 |
0.28 |
20.4 |
||
|
1.5 |
19/0.32 |
0.32 |
12.7 |
||
|
2.0 |
19/0.37 |
0.32 |
10.0 |
||
|
2.5 |
19/0.41 |
0.40 |
7.43 |
||
|
4.0 |
37/0.37 |
0.40 |
≤7Core |
≥1.5 |
4.88 |
|
6.0 |
37/0.45 |
0.50 |
3.30 |
||
|
Remarks: able to produce according to customer’s requirement |
|||||
