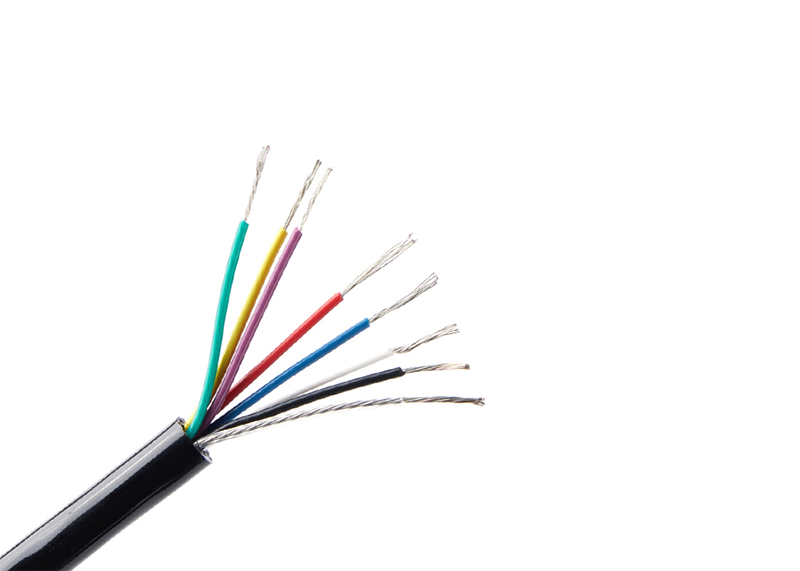

Technical data:
- Rated Temperature:-65℃∽+120℃
- Rated Voltage：600V
- Conductor: Stranded Silver Copper/Tinned Copper
- Insulation：FEP、PFA or PTFE
- Conductor.Color:red,yellow,blue,white,black,green,brown,orange,gray,transparent,bio-color,etc.
- Jacket:TPU
- Jacket Color:black,transparent,etc.
- Application:High voltage wire for electrical appliances and other equipment.
|
Section (mm2) |
Conductor No. (mm） |
Avg.Insulation Thickness（mm）（mm） |
Core NO. |
Jacket Thickness （mm） |
Max. Resistance 20℃ （≤Ω/km） |
|
|
Tinned Copper |
Silver Copper |
|||||
|
0.035 |
7/0.08 |
0.15 |
≤37Core |
≥1.0 |
568 |
525 |
|
0.05 |
7/0.10 |
0.20 |
356 |
330 |
||
|
0.08 |
7/0.12 |
0.20 |
245 |
227 |
||
|
0.12 |
7/0.15 |
0.25 |
160 |
146 |
||
|
0.20 |
7/0.20 |
0.25 |
90.4 |
83.5 |
||
|
0.35 |
19/0.16 |
0.25 |
53.1 |
49.5 |
||
|
0.50 |
19/0.18 |
0.25 |
36.7 |
36.0 |
||
|
0.75 |
19/0.23 |
0.28 |
≤19Core |
≥1.2 |
24.6 |
22.7 |
|
1.0 |
19/0.26 |
0.28 |
20.4 |
19.0 |
||
|
1.5 |
19/0.32 |
0.32 |
12.7 |
11.7 |
||
|
2.0 |
19/0.37 |
0.32 |
10.0 |
9.45 |
||
|
2.5 |
19/0.41 |
0.40 |
7.43 |
6.86 |
||
|
4.0 |
37/0.37 |
0.40 |
≤7Core |
≥1.5 |
4.88 |
4.51 |
|
6.0 |
37/0.45 |
0.50 |
3.30 |
3.05 |
||
|
Remarks: able to produce according to customer’s requirement |
||||||
