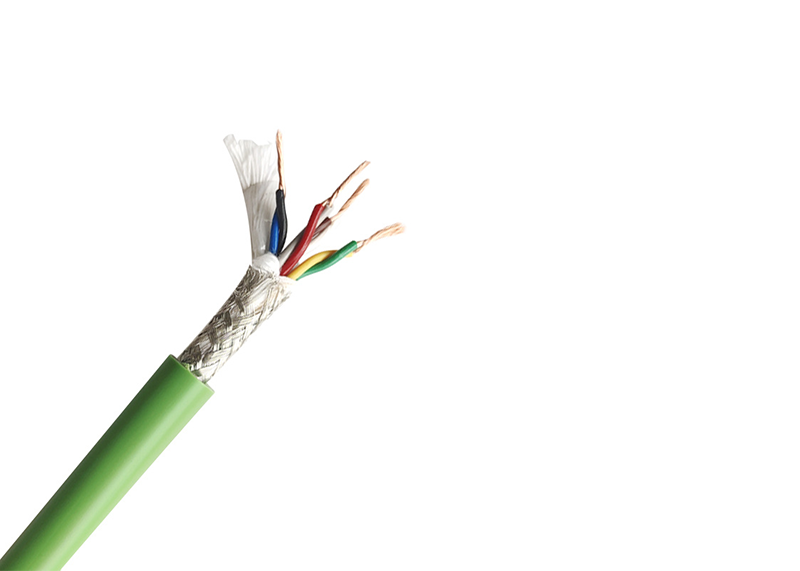

Technical data:
- Rating Temperature：105℃
- Rating Voltage：300V
- Conductor: stranded bare copper
- Insulation:105℃ lead free heat resistance PVC compound
- Shielding: Tinned Copper Braided
- Sheath:105℃ Flexible No lead heat resistance PVC Compound (dull)
- Min. bending Radius ：movable Installation:7.5XD(<4.0mm2);8XD(＜4.0mm2) Fixed Installation:4xD
- Working Temperature: Movable Installation:-5℃~105℃Fixed Installation :-40℃~105℃
- Flame Retardant Test:VW-1 IEC60332-1
- Environmental: ROHS
- Features：> 5 million times drag chain life, drag resistance, oil resistance, high flexibility, wear resistance, oil resistance, standard insulation thickness, easy to cut line, easy to peel.
- Application Scope：Mainly used in machine tools, robot system integration, industrial automation and other equipment, long-term in tow chain reciprocating power transmission cable.
|
Section Area (mm2) |
Specification (No/mm) |
Conductor Dia. (mm) |
Overall Dia. (mm) |
|
2*0.5 |
2*105/0.08 |
1.70 |
5.50 |
|
3*0.5 |
3*105/0.08 |
1.70 |
5.80 |
|
4*0.5 |
4*105/0.08 |
1.70 |
6.30 |
|
2*0.75 |
2*154/0.08 |
1.90 |
5.90 |
|
3*0.75 |
3*154/0.08 |
1.90 |
6.10 |
|
4*0.75 |
4*154/0.08 |
1.90 |
6.80 |
|
2*1.0 |
2*203/0.08 |
2.10 |
6.30 |
|
3*1.0 |
3*203/0.08 |
2.10 |
6.70 |
|
4*1.0 |
4*203/0.08 |
2.10 |
7.30 |
|
2*1.5 |
2*301/0.08 |
2.40 |
7.00 |
|
3*1.5 |
3*301/0.08 |
2.40 |
7.50 |
|
4*1.5 |
4*301/0.08 |
2.40 |
8.10 |
|
2*2.5 |
2*497/0.08 |
3.20 |
8.70 |
|
3*2.5 |
3*497/0.08 |
3.20 |
9.70 |
|
4*2.5 |
4*497/0.08 |
3.20 |
10.4 |
|
Remarks: able to produce upon customer’s requirement |
|||
