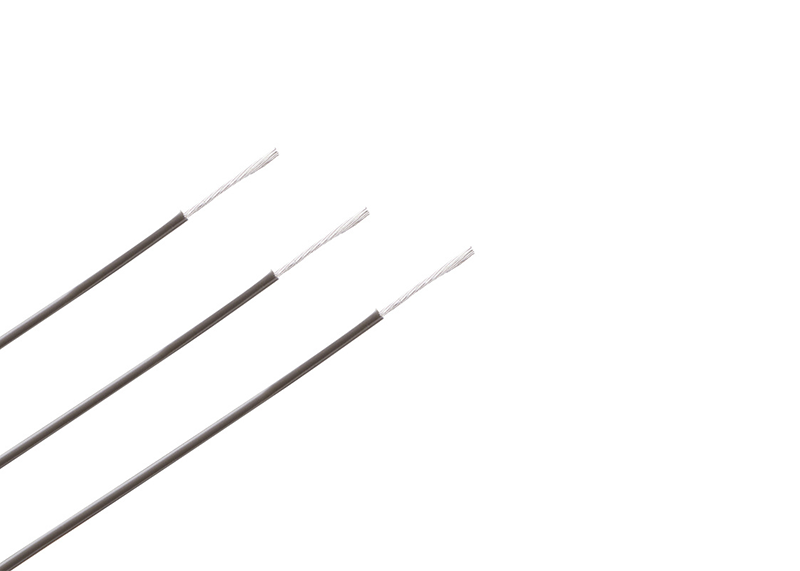

Technical Parameters
- Rated Temperature：-65℃∽+250℃
- Rated Voltage：600V
- Conductor: 36AWG-10AWG solid/stranded Tinned Copper /Silver Copper/Nickel Copper
- Insulation：PFA Teflon
- Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate/Standard: UL785-2000
- Application: widely used in electronic appliances, lighting, instrumentation
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃（≤Ω/km） |
|
36 |
0.014 |
7/0.05 |
0.23 |
0.20 |
0.61 |
1360 |
|
34 |
0.02 |
1/0.16 |
0.23 |
0.20 |
0.62 |
1048 |
|
32 |
0.03 |
7/0.08 |
0.23 |
0.20 |
0.70 |
664.8 |
|
1/0.20 |
0.23 |
0.20 |
0.66 |
588.3 |
||
|
30 |
0.05 |
7/0.10 |
0.23 |
0.20 |
0.76 |
381 |
|
1/0.26 |
0.23 |
0.20 |
0.72 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.26 |
0.21 |
0.88 |
239 |
|
1/0.32 |
0.26 |
0.21 |
0.84 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.26 |
0.21 |
1.00 |
150 |
|
1/0.41 |
0.26 |
0.21 |
0.93 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.26 |
0.21 |
1.12 |
94.2 |
|
19/0.12 |
0.26 |
0.21 |
1.12 |
89.3 |
||
|
22 |
0.33 |
7/0.25 |
0.26 |
0.21 |
1.27 |
56.4 |
|
19/0.15 |
0.26 |
0.21 |
1.27 |
59.4 |
||
|
20 |
0.5 |
7/0.32 |
0.26 |
0.21 |
1.48 |
35.2 |
|
19/0.18 |
0.26 |
0.21 |
1.42 |
36.7 |
||
|
18 |
0.8 |
7/0.40 |
0.26 |
0.21 |
1.72 |
23.2 |
|
19/0.23 |
0.26 |
0.21 |
1.67 |
24.6 |
||
|
16 |
1.3 |
19/0.30 |
0.26 |
0.21 |
2.02 |
14.6 |
|
14 |
2 |
19/0.37 |
0.26 |
0.21 |
2.37 |
10 |
|
12 |
3.3 |
19/0.48 |
0.26 |
0.21 |
2.92 |
5.64 |
|
10 |
5.3 |
37/0.43 |
0.26 |
0.21 |
3.53 |
3.546 |
|
Remarks: more AWG available, pls. contact us |
||||||
