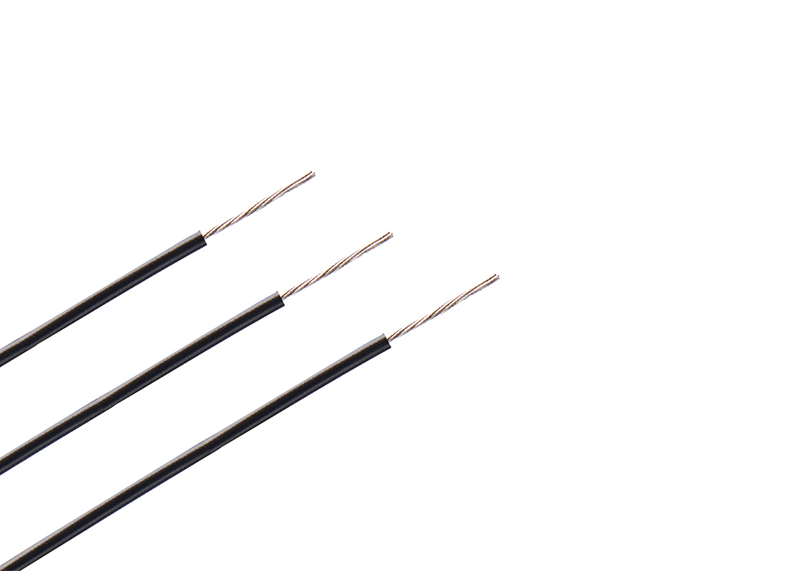

Technical Parameters
- Rated Temperature：-80℃∽+105℃
- Rated Voltage：not specified
- Conductor：36AWG-16AWG solid/stranded Silver Copper/Nickel Copper
- Insulation：PTFE Teflon
- Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, off white etc.
- Certificate/Standard: UL-785
- Application: widely used in electronic appliances, lighting, instrumentation
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation. Dia. (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃（≤Ω/km） |
|
36 |
0.014 |
7/0.05 |
0.20 |
0.18 |
0.55 |
1500.98 |
|
34 |
0.02 |
1/0.16 |
0.20 |
0.18 |
0.56 |
910.45 |
|
32 |
0.03 |
7/0.08 |
0.20 |
0.18 |
0.64 |
664.8 |
|
1/0.20 |
0.20 |
0.18 |
0.60 |
588.3 |
||
|
30 |
0.05 |
7/0.10 |
0.20 |
0.18 |
0.70 |
381 |
|
1/0.26 |
0.20 |
0.18 |
0.66 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.20 |
0.18 |
0.76 |
239 |
|
1/0.32 |
0.20 |
0.18 |
0.72 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.20 |
0.18 |
0.88 |
150 |
|
1/0.41 |
0.20 |
0.18 |
0.81 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.20 |
0.18 |
1.00 |
94.2 |
|
19/0.12 |
0.20 |
0.18 |
1.00 |
89.3 |
||
|
22 |
0.33 |
7/0.25 |
0.20 |
0.18 |
1.15 |
59.4 |
|
19/0.15 |
0.20 |
0.18 |
1.15 |
56.4 |
||
|
20 |
0.5 |
7/0.32 |
0.20 |
0.18 |
1.36 |
36.7 |
|
19/0.18 |
0.20 |
0.18 |
1.30 |
35.2 |
||
|
18 |
0.8 |
7/0.40 |
0.20 |
0.18 |
1.60 |
22.7 |
|
19/0.23 |
0.20 |
0.18 |
1.55 |
23.2 |
||
|
17 |
1 |
19/0.26 |
0.20 |
0.18 |
1.70 |
18.3 |
|
16 |
1.3 |
19/0.30 |
0.20 |
0.18 |
1.90 |
14.6 |
|
Remarks: able to produce according to customer’s requirement |
||||||
