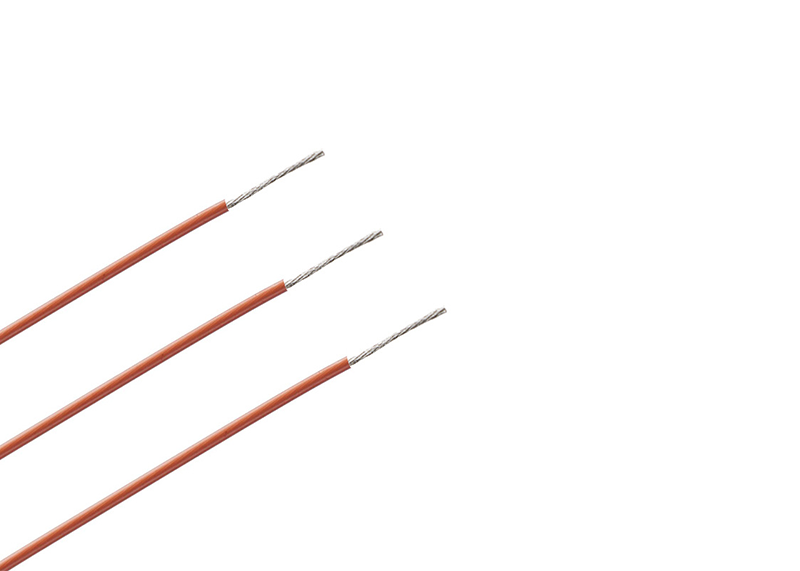

Technical Parameters
- Rated Temperature：-80℃∽+200℃
- Rated Voltage：600V
- Conductor：26AWG-6AWG solid/stranded Tinned Copper /Silver Copper/Nickel Copper
- Insulation：PFA Teflon
- Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate/Standard: UL785-2000
- Application: widely used in electronic appliances, lighting, instrumentation
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃（≤Ω/km） |
|
26 |
0.13 |
7/0.16 |
0.51 |
0.45 |
1.50 |
150 |
|
1/0.41 |
0.51 |
0.45 |
1.43 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.51 |
0.45 |
1.62 |
94.2 |
|
19/0.12 |
0.51 |
0.45 |
1.62 |
89.3 |
||
|
22 |
0.33 |
7/0.25 |
0.51 |
0.45 |
1.77 |
56.4 |
|
19/0.15 |
0.51 |
0.45 |
1.77 |
59.4 |
||
|
20 |
0.5 |
7/0.32 |
0.51 |
0.45 |
1.98 |
35.2 |
|
19/0.18 |
0.51 |
0.45 |
1.92 |
36.7 |
||
|
18 |
0.8 |
7/0.40 |
0.51 |
0.45 |
2.22 |
23.2 |
|
19/0.23 |
0.51 |
0.45 |
2.17 |
24.6 |
||
|
16 |
1.3 |
19/0.30 |
0.51 |
0.45 |
2.52 |
14.6 |
|
14 |
2 |
19/0.37 |
0.51 |
0.45 |
2.87 |
8.96 |
|
12 |
3.3 |
19/0.48 |
0.51 |
0.45 |
3.42 |
5.64 |
|
10 |
5.3 |
37/0.43 |
0.51 |
0.45 |
4.03 |
3.546 |
|
9 |
6.5 |
37/0.48 |
0.76 |
0.65 |
3.92 |
3.12 |
|
8 |
8.2 |
133/0.28 |
0.76 |
0.65 |
5.72 |
2.16 |
|
7 |
10 |
133/0.32 |
0.76 |
0.65 |
6.32 |
1.68 |
|
6 |
13 |
133/0.36 |
0.76 |
0.65 |
6.92 |
1.45 |
|
Remarks: more AWG available, pls. contact us |
||||||
