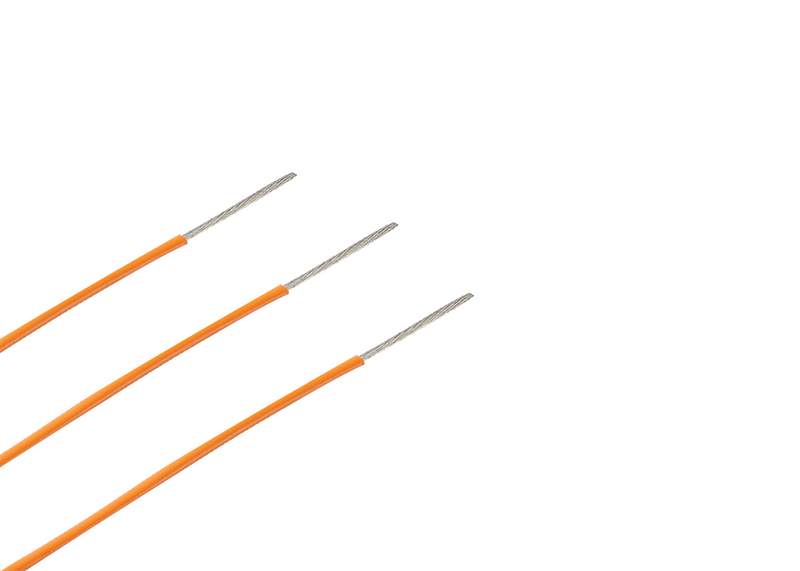

Technical Parameters
- Rated Temperature：-80℃∽+200℃
- Rated Voltage：NOT SPECIFIED
- Conductor：32AWG-16AWG solid or stranded Tinned copper
- Insulation：FEP(F46) Teflon
- Colors: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate: tested and approved by UL, UL file No.: E311865
- Application: widely used in electronic appliances, lighting, instrumentation etc.
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thick ness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. （mm） |
Max. Resistance 20℃ ≤Ω/km） |
|
32 |
0.03 |
7/0.08 |
0.26 |
0.229 |
0.76 |
664.8 |
|
1/0.20 |
0.26 |
0.229 |
0.72 |
588.3 |
||
|
30 |
0.05 |
7/0.10 |
0.26 |
0.229 |
0.82 |
381 |
|
1/0.254 |
0.26 |
0.229 |
0.774 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.26 |
0.229 |
0.88 |
239 |
|
1/0.32 |
0.26 |
0.229 |
0.84 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.26 |
0.229 |
1.00 |
150 |
|
1/0.40 |
0.26 |
0.229 |
0.92 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.26 |
0.229 |
1.12 |
94.2 |
|
1/0.50 |
0.26 |
0.229 |
1.02 |
89.3 |
||
|
22 |
0.33 |
19/0.16 |
0.26 |
0.229 |
1.32 |
59.4 |
|
1/0.65 |
0.26 |
0.229 |
1.17 |
56.4 |
||
|
20 |
0.5 |
19/0.18 |
0.26 |
0.229 |
1.42 |
36.7 |
|
1/0.80 |
0.26 |
0.229 |
1.32 |
35.2 |
||
|
18 |
0.8 |
19/0.23 |
0.26 |
0.229 |
1.67 |
23.2 |
|
17 |
1.0 |
19/0.26 |
0.26 |
0.229 |
1.82 |
18.3 |
|
16 |
1.3 |
19/0.30 |
0.26 |
0.229 |
2.02 |
14.6 |
|
Remarks: more AWG available, pls. contact us |
||||||
