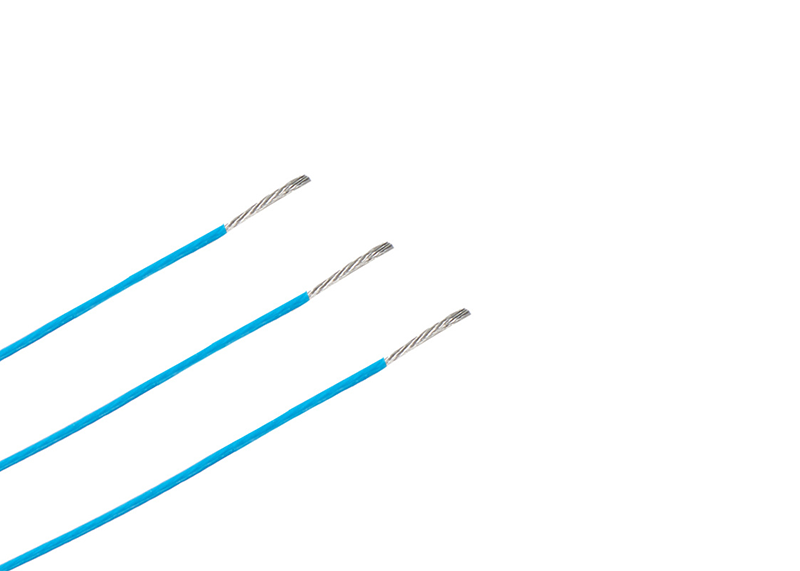

Technical Parameters
- Rated Temperature：-80℃∽+200℃
- Rated Voltage：600V
- Conductor：30AWG-4/0AWG solid or stranded Tinned copper
- Insulation：FEP(F46) Teflon
- Colors: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
- Certificate: tested and approved by UL, UL file No.: E311865
- Application: widely used in electronic appliances, lighting, instrumentation etc.
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. （mm） |
Max. Resistance 20℃ （≤Ω/km） |
|
30 |
0.05 |
7/0.10 |
0.36 |
0.33 |
1.02 |
381 |
|
1/0.254 |
0.36 |
0.33 |
0.974 |
361 |
||
|
28 |
0.08 |
7/0.12 |
0.36 |
0.33 |
1.08 |
239 |
|
1/0.32 |
0.36 |
0.33 |
1.04 |
227 |
||
|
26 |
0.13 |
7/0.16 |
0.36 |
0.33 |
1.20 |
150 |
|
1/0.40 |
0.36 |
0.33 |
1.12 |
143 |
||
|
24 |
0.22 |
7/0.20 |
0.36 |
0.33 |
1.32 |
94.2 |
|
1/0.50 |
0.36 |
0.33 |
1.22 |
89.3 |
||
|
22 |
0.33 |
1/0.65 |
0.36 |
0.33 |
1.37 |
56.4 |
|
19/0.16 |
0.36 |
0.33 |
1.52 |
59.4 |
||
|
20 |
0.5 |
1/0.80 |
0.36 |
0.33 |
1.52 |
35.2 |
|
19/0.18 |
0.36 |
0.33 |
1.67 |
36.7 |
||
|
18 |
0.8 |
19/0.23 |
0.36 |
0.33 |
1.87 |
23.2 |
|
17 |
1.0 |
19/0.26 |
0.36 |
0.33 |
2.02 |
18.3 |
|
16 |
1.3 |
19/0.30 |
0.36 |
0.33 |
2.22 |
14.6 |
|
14 |
2.0 |
19/0.37 |
0.36 |
0.33 |
2.57 |
8.96 |
|
12 |
3.3 |
19/0.49 |
0.36 |
0.33 |
3.17 |
5.64 |
|
10 |
5.3 |
37/0.43 |
0.36 |
0.33 |
3.73 |
3.546 |
|
Remarks: more AWG available, pls. contact us |
||||||
